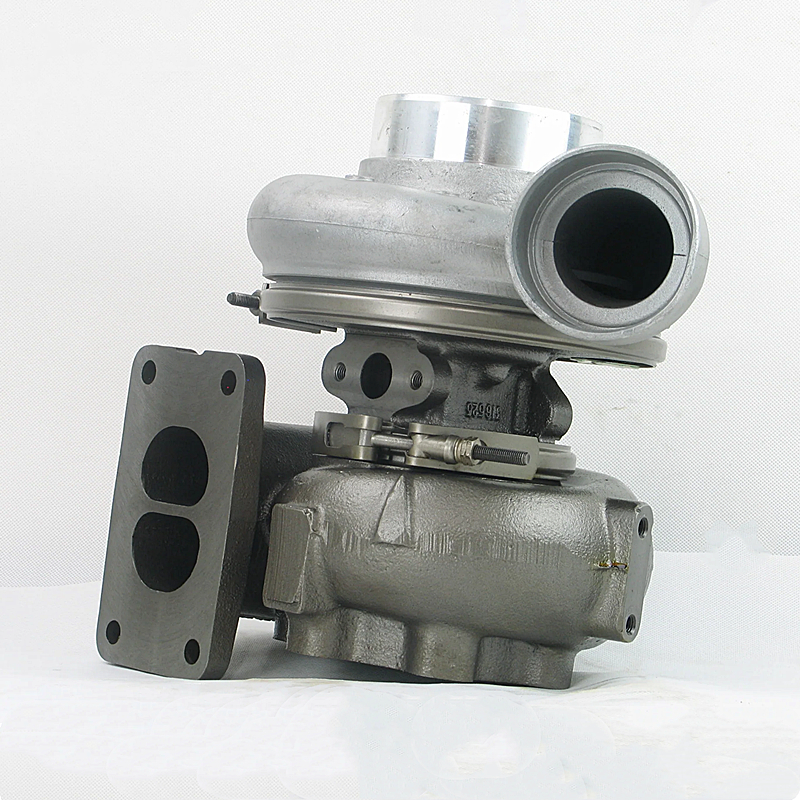

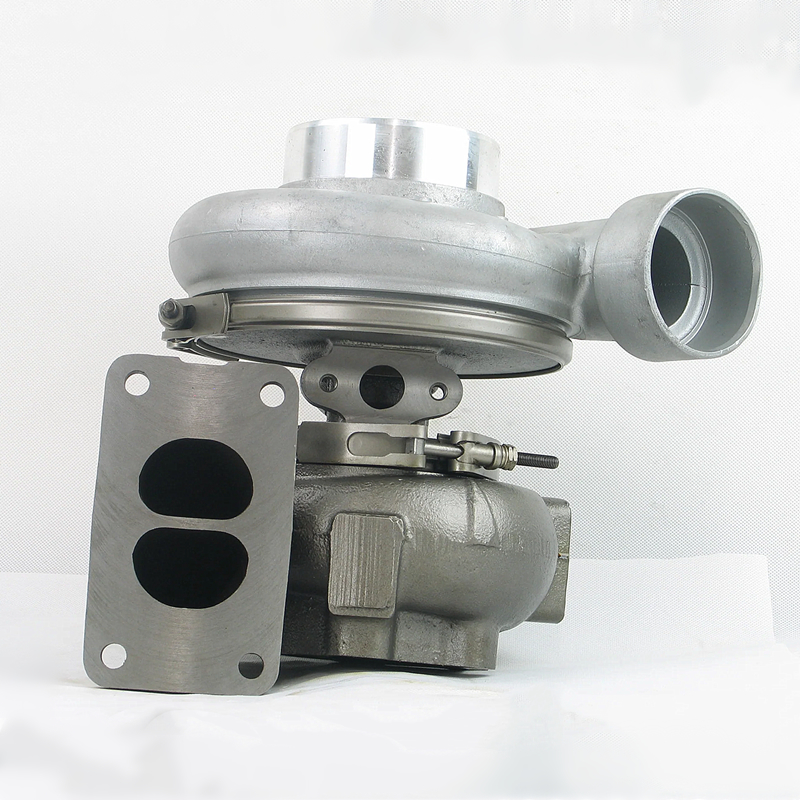

316699 53319887100 53319887104 5331-988-7100 A0060966699 S400 Turbocharger for Mercedes Benz Actros Truck Euro 3 OM501LA Engine

316699 53319887100 53319887104 5331-988-7100 A0060966699 S400 Turbocharger for Mercedes Benz Actros Truck Euro 3 OM501LA Engine​

Fits the following:

Part Number: 316699
Previous Version: 53319887127, 317405
OE Number: 0060966699, 0070966499, 0070967899, 0070964699, A0060966699, A0070966499,
A0070967899, A0070964699, 0070964799, A0070964799, 0080965999,A0080965999, 417495-A
Year: 1997-11
Description: Actros Truck Euro 3
Applications: 1997-11 Mercedes Benz Actros Truck Euro 3 with OM501LA Engine
Manufacturer Part Number: 316429, 317762, 318052, 317405, 53319707127
CHRA: 316700
Turbo Model: S400
Engine: OM501LA, OM501LA Euro-3, OM501LA
Displacement: 11.97L, 11950 ccm, V6 Cylinders
KW: 315/428 HP
Fuel: Diesel
RPM: 1800

Angle α (compressor housing): 54º
Angle β (turbine housing): 0º
Bearing Housing: 317028/315498
Turbine Wheel: 315273 (Ind. 83.6 mm, Exd. 74.4 mm, 6+6 blades)(1253400435)
Comp. Wheel: 169956 (Ind. 63.79 mm, Exd. 93.05 mm, 6+6 blades)
Back plate: 316010 (1253400300)
Heat shield Number: 315964
Repair Kit: 318396/318397 (1253400750)
Turbine Housing: 316431
Compressor Cover: 316424
Gasket (turbine inlet): 210648 (INOX Steel)
Gasket (turbine outlet): 210239 (Stainless Steel)
Gasket (oil outlet): 210060 (2475013)(Paper)
NOTE: Also for 230, 260 and 290 kW
